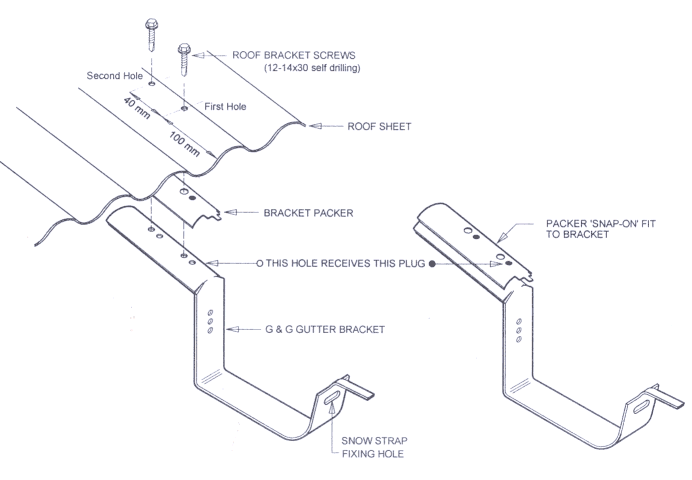

The G&G Fascia-less Gutter Bracket allows the fixing of gutters to corrugated iron sheet roofs which have no fascia boards

The brackets come with a polypropylene packer which clips to the top of the bracket and goes between the bracket and the iron sheeting to facilitate gutter fall,the packers clip to one another

The bracket can be varied in pitch by simply bending the extended shank to the pitch desired.

The brackets are recommended to be fixed at where the sheets of iron overlap one another (760mm) where, together with the guttering, act as a stiffener along the edge of the iron sheeting.

The brackets are available in four sizes and profiles:

  • 115mm low front quad gutter

  • 115mm high front quad gutter

  • 125mm low front quad gutter

  • 150mm half-round gutter
